K-13 Spray On System

Unmatched Thermal and Acoustic Performance, K-13 sets the standard for Sprayed Cellulose Insulation

K-13 Spray-on-System is a spray applied cellulose product that provides both thermal and acoustic benefits, while maintaining an aesthetically pleasing finish. Typically used on an exposed ceiling, the natural textured finish and range of color options create limitless opportunities for design solutions.

Made from renewable ingredients, containing 80% Pre-Consumer recycled content, K-13 provides a green alternative to other insulation products. K-13 has a thermal resistance rating of R-3.75 per inch and can significantly increase ambient sound quality due to its superior acoustical performance as measured per ASTM C 423. When required K-13 can be applied at up to 10” thick with a mechanical support to achieve a R-37.5 rating as part of the K-13 High-R System.

As a licensed applicator, United Spray is ready and eager to help you incorporate K-13 into your next project. Contact us to get the conversation started.

Services we provide

Trade Scopes

K13 Sprayed Insulation
Sprayed Cellulose Insulation

CSI Codes

072129 - Sprayed Insulation
072129 - K-13 Spray-On System

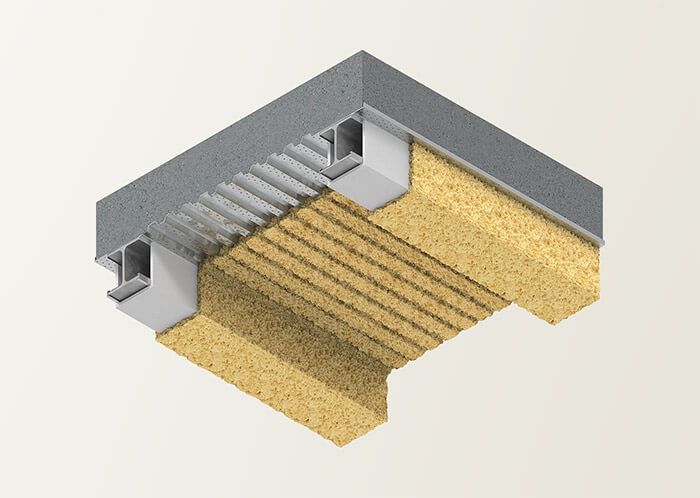

Render of tan K-13 thermal acoustic insulation applied on ceiling

01

Reduce Indoor Noise Pollution

Take control over the sound quality of your space
02

Thermal Resistance of R-3.75 per Inch

Never feel cold again with the monolithic thermal coating, install up to 10" thick for high R-37.5 system for exceptional thermal performance
03

Superb Finish for Any Space

Seek perfection. With K-13 you don't have to choose between aesthetics and performance
04

UL Rated to be installed over Spray Fireproofing

Listed in 6 UL BXUV Guide Design Assemblies

Wide Variety of Standard and Custom Colors for Seamless Design Integration

Available in seven carefully selected standard colors with an option to create completely custom color, K-13 gives architects and designers freedom to set the mood of a space. Generally used on an exposed ceiling, K-13 can be made to blend in and go almost unnoticed or it can be the star of the show. Endless possibilities for even most demanding designs.

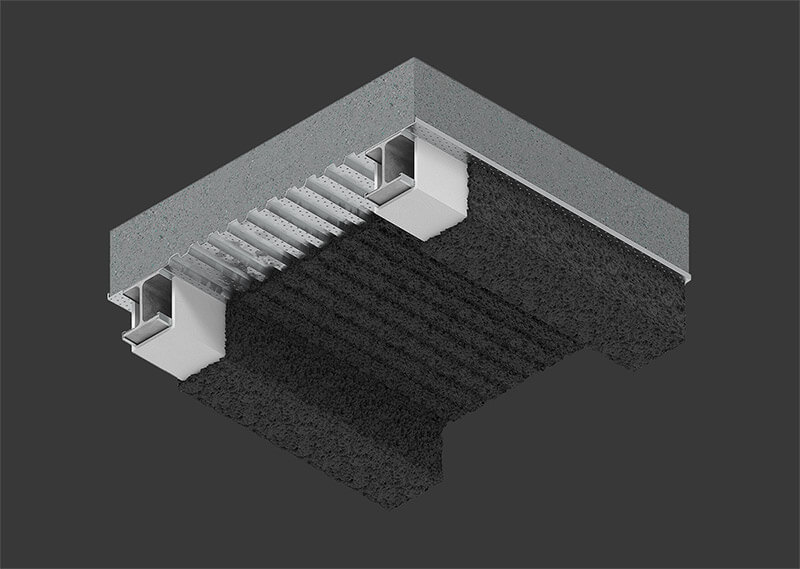

K-13 Thermal Acoustic Insulation in standart best-seller black color

Standard Color | K-13 Black

K-13 Thermal Acoustic Insulation in standart grey color

Standard Color | K-13 Gray

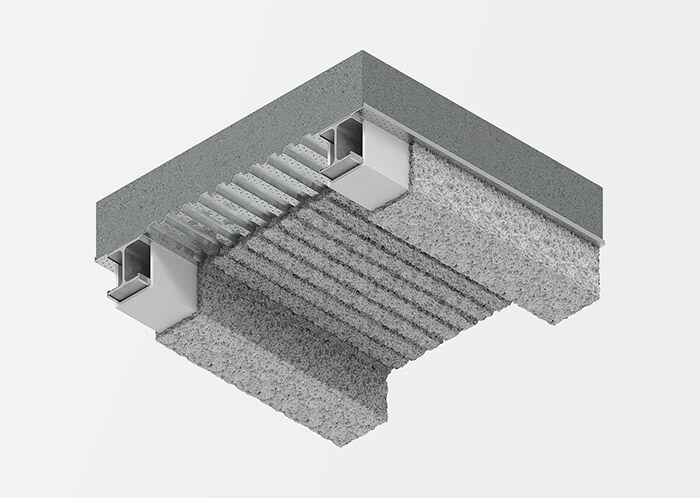

K-13 Thermal Acoustic Insulation in standart light grey color

Standard Color | K-13 Light Gray

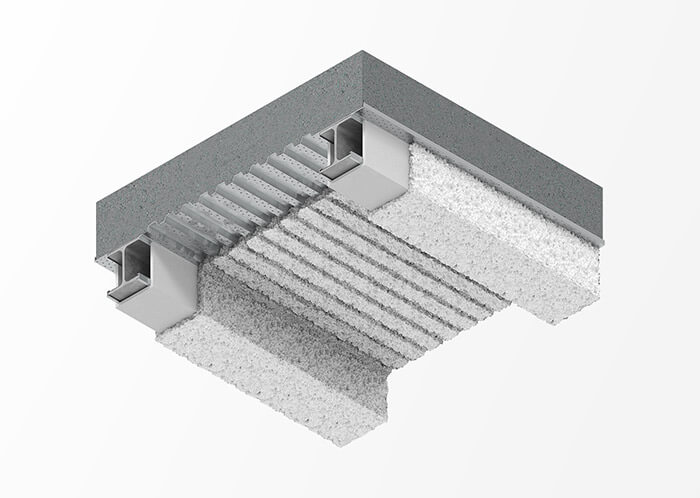

K-13 Thermal Acoustic Insulation in standart white color

Standard Color | K-13 White

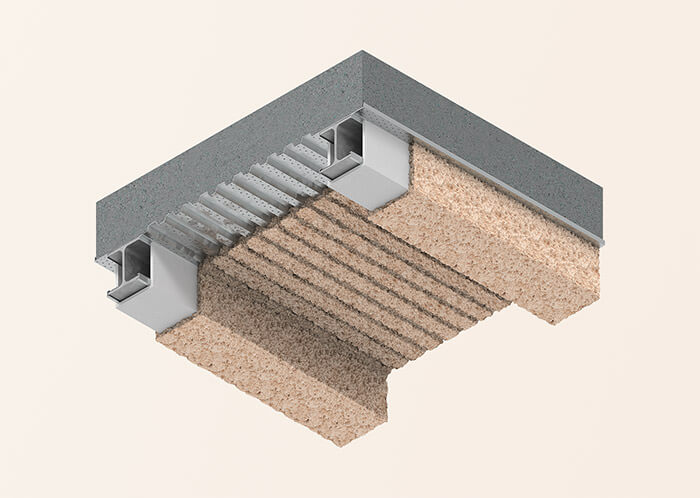

K-13 Thermal Acoustic Insulation in standart beige color

Standard Color | K-13 Beige

K-13 Thermal Acoustic Insulation in standart tan color

Standard Color | K-13 Tan

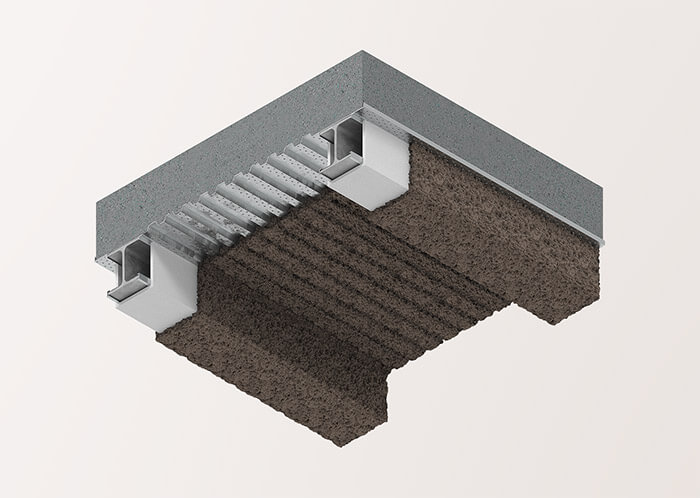

K-13 Thermal Acoustic Insulation in standart cocoa color

Standard Color | K-13 Cocoa

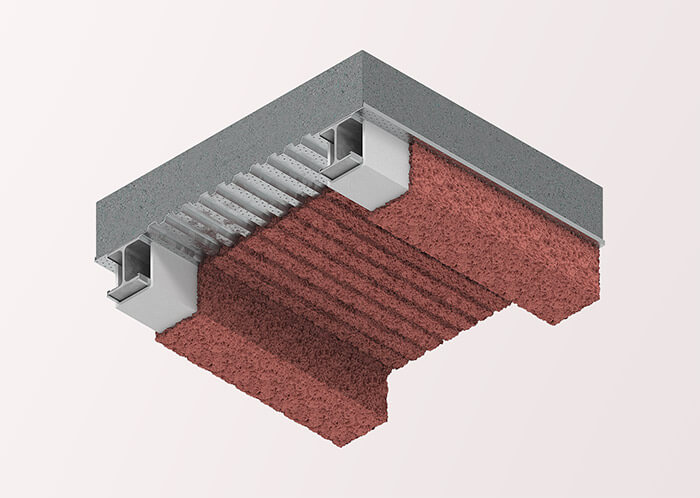

K-13 Thermal Acoustic Insulation in custom orange color

Custom Color | Warm Sienna 1203

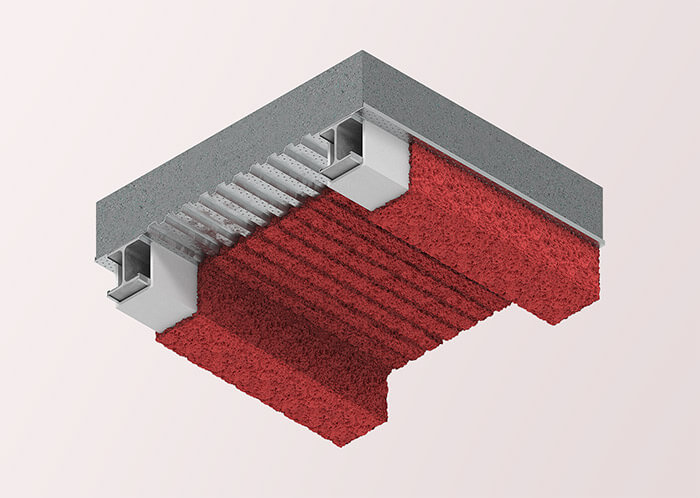

K-13 Thermal Acoustic Insulation in custom red color

Custom Color | Million Dollar Red 2003

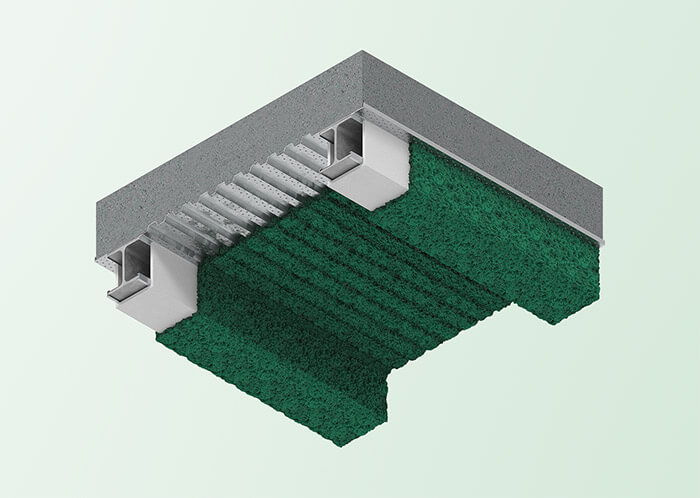

K-13 Thermal Acoustic Insulation in custom green color

Custom Color | Rainforest Foliage 2040

K-13 Thermal Acoustic Insulation in custom blue color

Custom Color | Twilight 2058-10

K-13 Thermal Acoustic Insulation in custom light blue color

Custom Color | Poolside 775

K-13 Thermal Acoustic Insulation in custom lavender color

Custom Color | Feather Soft 1431

K-13 Thermal Acoustic Insulation in custom yellow color

Custom Color | Da Vinci's Canvas 208

Click on colors to see more

Types of projects

K-13 posses unique and desirable thermal and acoustic performance characteristics, that put it in a league of its own, making it a top choice building product for a large variety of spaces. The versatility of this product line has established K‑13 as the benchmark in sprayed cellulose products.

Airports
Worship Centers
Hotels
Stadiums
Museums
Parking Garages
Offices

Warehouses
Schools
Event Centers
Gymnasiums
Storage Facilities
Shopping Malls
Theaters

K-13 Performance Overview

Thermal Performance

K-13 is a sprayed-in-place insulator, the application process uses forced air to propel the cellulose insulation onto the backing, filling all voids, seams and penetrations creating a completely monolithic layer of cellulose which helps to reduce air infiltration. K-13 has a thermal resistance rating of R-3.75 per inch as measured by ASTM C 518 and can be applied up to 5" thick without the aid of a mechanical support system. For applications that require higher R-Values the K-13 High-R-System is mechanically supported and allows applications up to 10" thick, providing R-37.5. K-13's proprietary glue mixture gives strong product stability compared to prefabricated alternatives and does lose thermal efficiency over time from compression or air gaps.

Acoustical Performance

Due to its cellulose makeup, K-13 the product absorbs sound waves much better than rigid alternatives. This mitigates interior noise pollution by reducing sound wave reverberation and creates a more enjoyable end user experience. The sound deadening qualities of K-13 have been measured using ASTM C 423 which assigns a Noise Reduction Coefficient (NRC) illustrating a products ability to control excess noise. The superior sound reducing performance of K-13 make it ideal for high noise venues such as Theaters, Office Buildings, Cafeterias, Arenas and many more.

K-13 Over Fireproofing

K-13 has been approved to be installed over Spray Fireproofing and is listed in the UL BXUV guidelines as acceptable to include in some fire rated assemblies without reducing the fire rating. K-13 can be installed over deck and beams for an open ceiling floor plan in areas that also require fire protection. K-13 can also be installed where fireproofed steel member penetrate the building envelope, this application reduces the thermal transmission of heat or cold through the conductive steel members.

PRODUCT MANUFACTURED BY

DOWNLOADS

K-13 TECHNICAL DATA SHEET

K-13 SPECIFICATION

K-13 BROCHURE

Technical Data

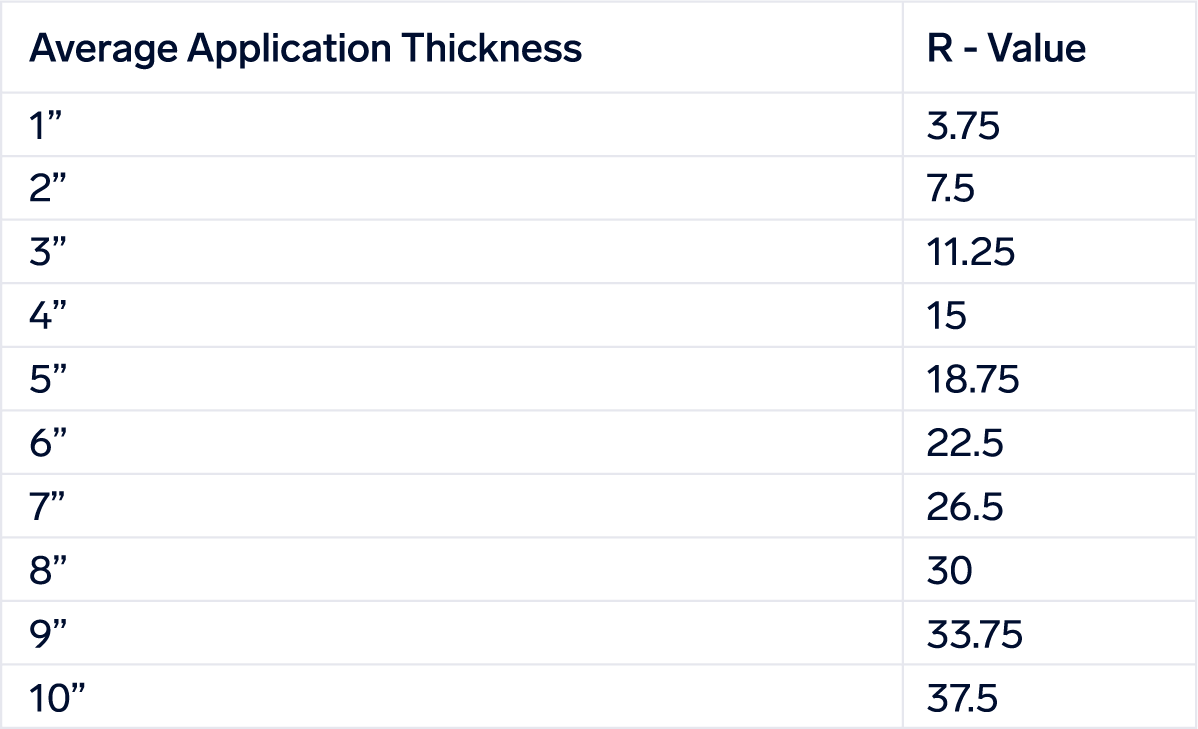

ASTM C 518 - Thermal Conductivity (R - Value)

R-VALUE: 3.75 PER INCH

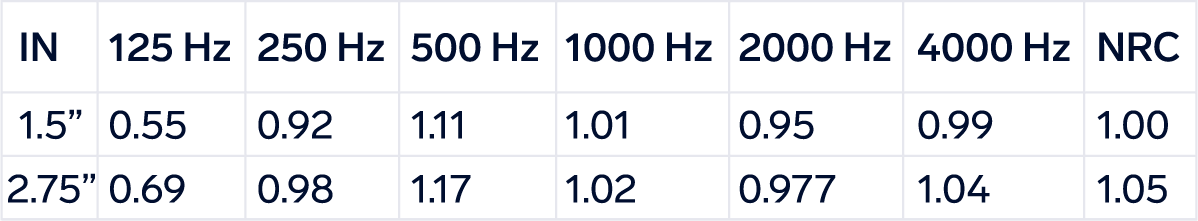

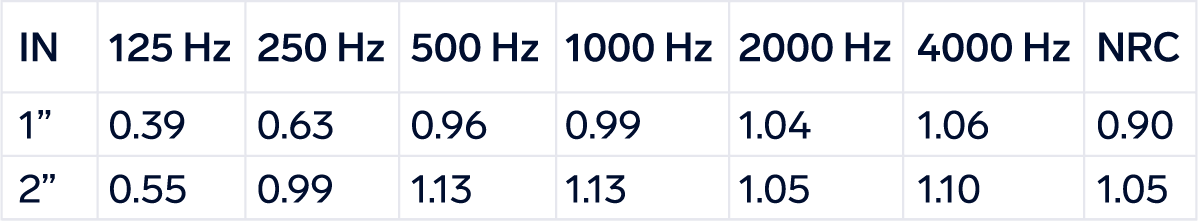

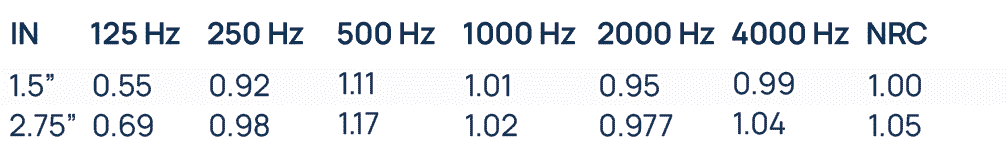

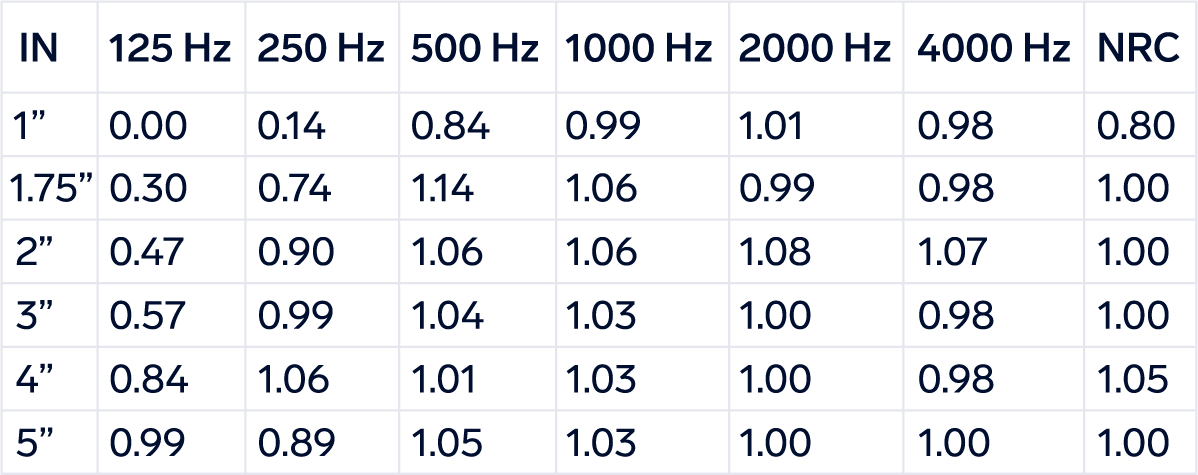

ASTM C 423 - Sound Absorption (NRC)

K-13 ON SOLID BACKING

K-13 ON 1.5" METAL DECK

K-13 ON 2" METAL DECK

K-13 ON 3" METAL DECK

Compatibility

International Cellulose Corporations patented water based adhesive allows for the application of K13 to virtually any properly prepared substrate. This includes metal deck, barrel-vaults, concrete decks, gypsum, wood and other surfaces.

Environmental Sustainability

Made from renewable ingredients, containing 80% Pre-Consumer recycled content, K-13 provides a green alternative to other insulation products.
